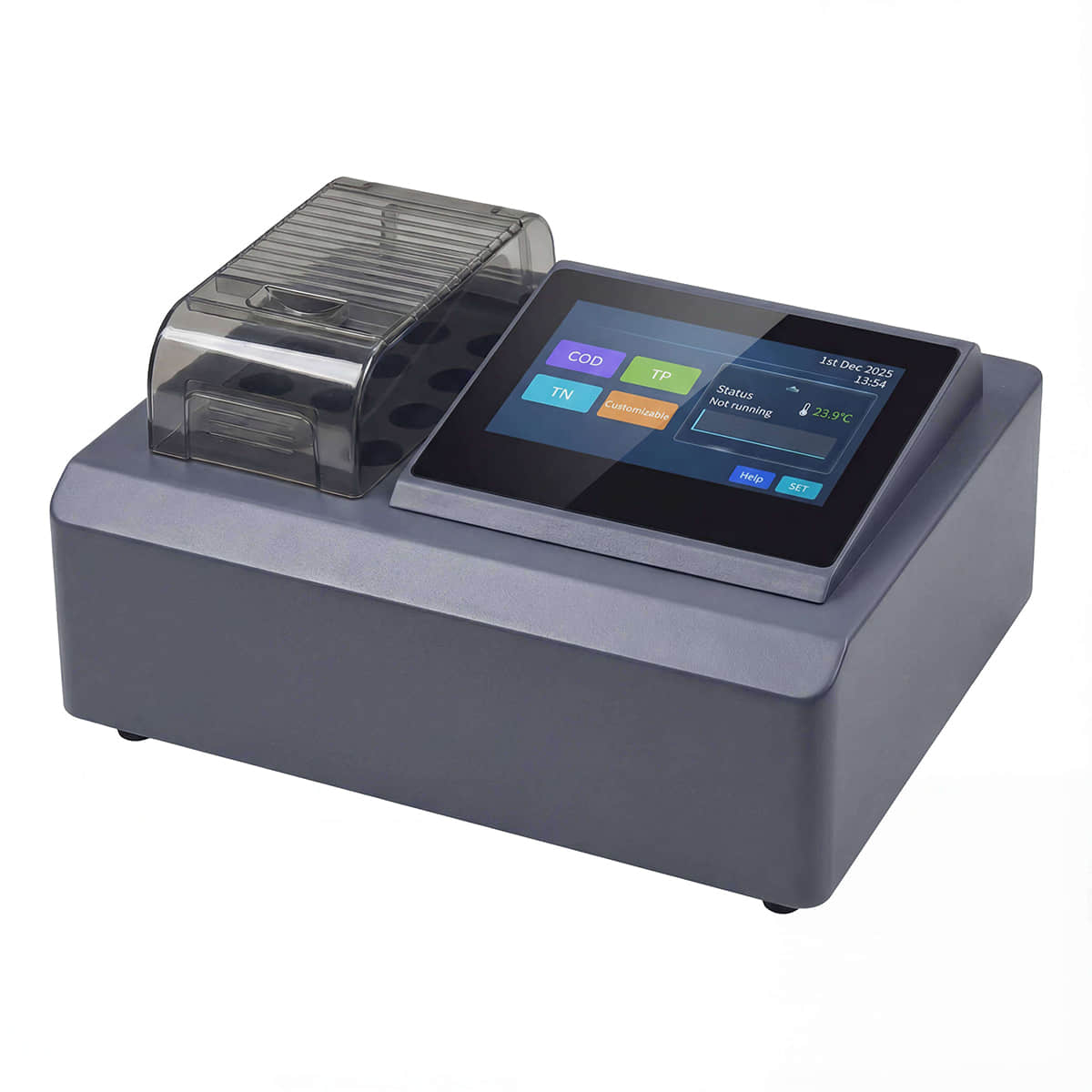

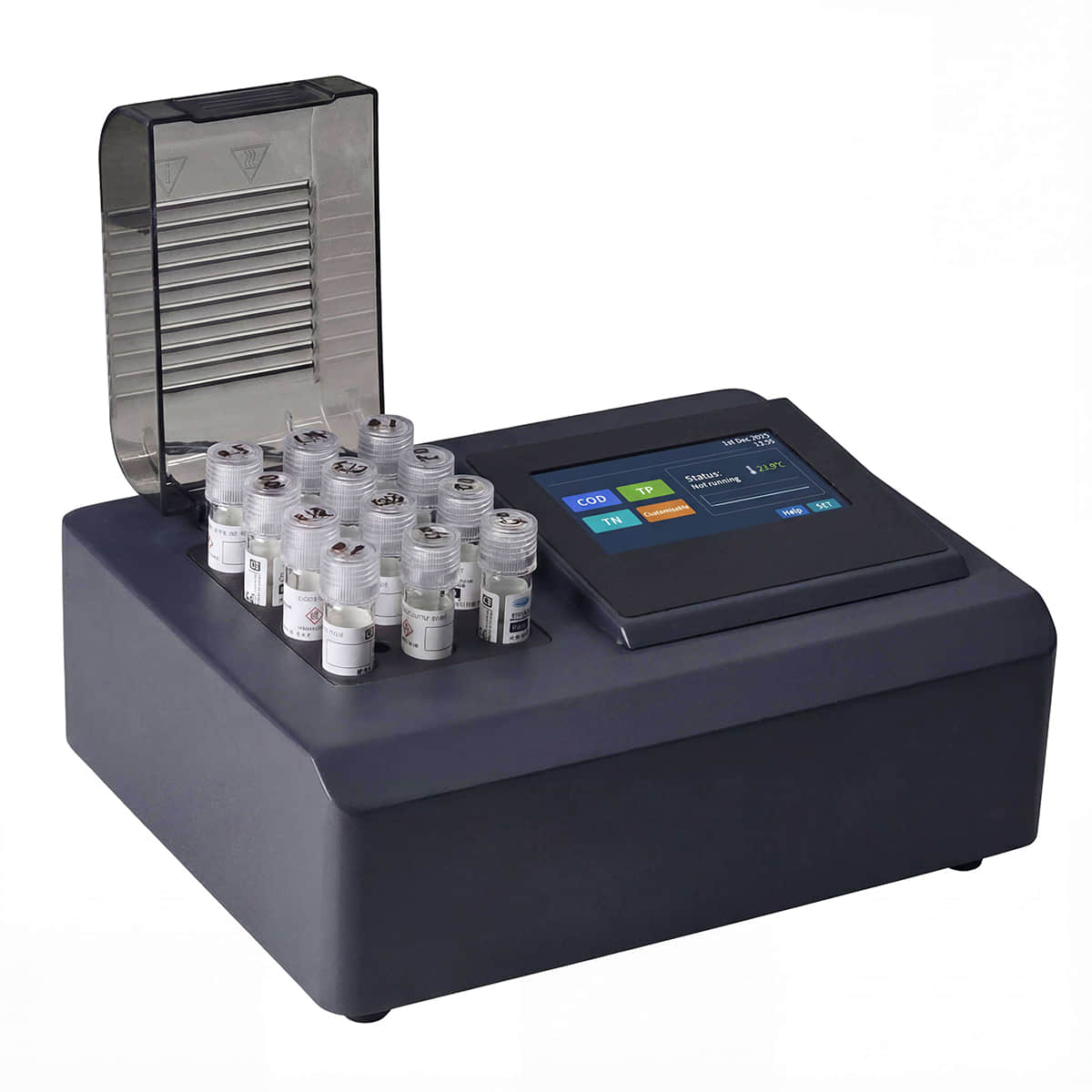

iDea12 Benchtop Smart Digestion Instrument
Featuring a fast, intelligent digestion system, the iDea12 supports one-touch operation for multiple water quality testing parameters to meet most user needs, with customizable digestion temperature and time for extended applications. Its user-friendly interface and precise temperature control provide a reliable and efficient solution for laboratory water quality testing in environment monitoring, wastewater treatment, industrial water management, education and research.
Key Feature
• 4.3-inch full-color capacitive touchscreen with intuitive operation
• Three preset digestion programs (COD, TP, TN) with customizable options; Preset programs can be modified using an administrator password.
• Real-time display of temperature curves for precise monitoring during digestion.
• Visual pop-up notifications with audible alerts ensure process monitoring and timely response.
• Real-time display of project type, operating status, current temperature, set time, and remaining time.
• Thick-film heating technology for long service life and rapid heating.
• Intelligent PID temperature control for precise and stable performance.
• Temperature calibration function to eliminate deviations between displayed and actual sample temperature.
• Automatic heating cut-off in case of over-temperature to protect equipment and operator.
• Integrated heat-resistant protective cover for safe observation during digestion.
• Intelligent air-cooling system to maintain suitable internal temperature, prevent burns, and extend electronic component lifespan.
Technical Specifications
Item | Parameter |
Display & Input | 4.3-inch full-color capacitive touchscreen |
Digestion Capacity | 12 tubes |
Digestion Volume | 0–10 mL |
Digestion Hole Size | 16.6 mm diameter / 65 mm depth |
Temperature Control Mode | Intelligent PID temperature control |
Temperature Control Resolution | 0.1°C |
Temperature Accuracy | ±1.5 °C |
Temperature Range | 0–200°C |
Heating Speed | From 25°C to 165°C within 6 minutes |
Custom Programs | Supported |
Heating Mode | Thick-film heating technology |
Overtemperature Protection | Automatic heating cut-off |
Protective Cover | High-transparency integrated safety shield |
Intelligent cooling | Automatic fan start/stop to prevent accidental burns |
Temperature Calibration | Calibrate temperature discrepancy between the sensor and the digestion hole |
Completion Prompt | Pop-up notification + buzzer alert |
Rated Voltage | AC 110–220V / 50/60Hz |
Rated Power | 375 W |
Dimensions (L × W × H) | 270 × 214 × 146 mm |
Weight | 3.55 kg |
Comprehensive operating instructions and technical guidance are provided in the official user manual.
