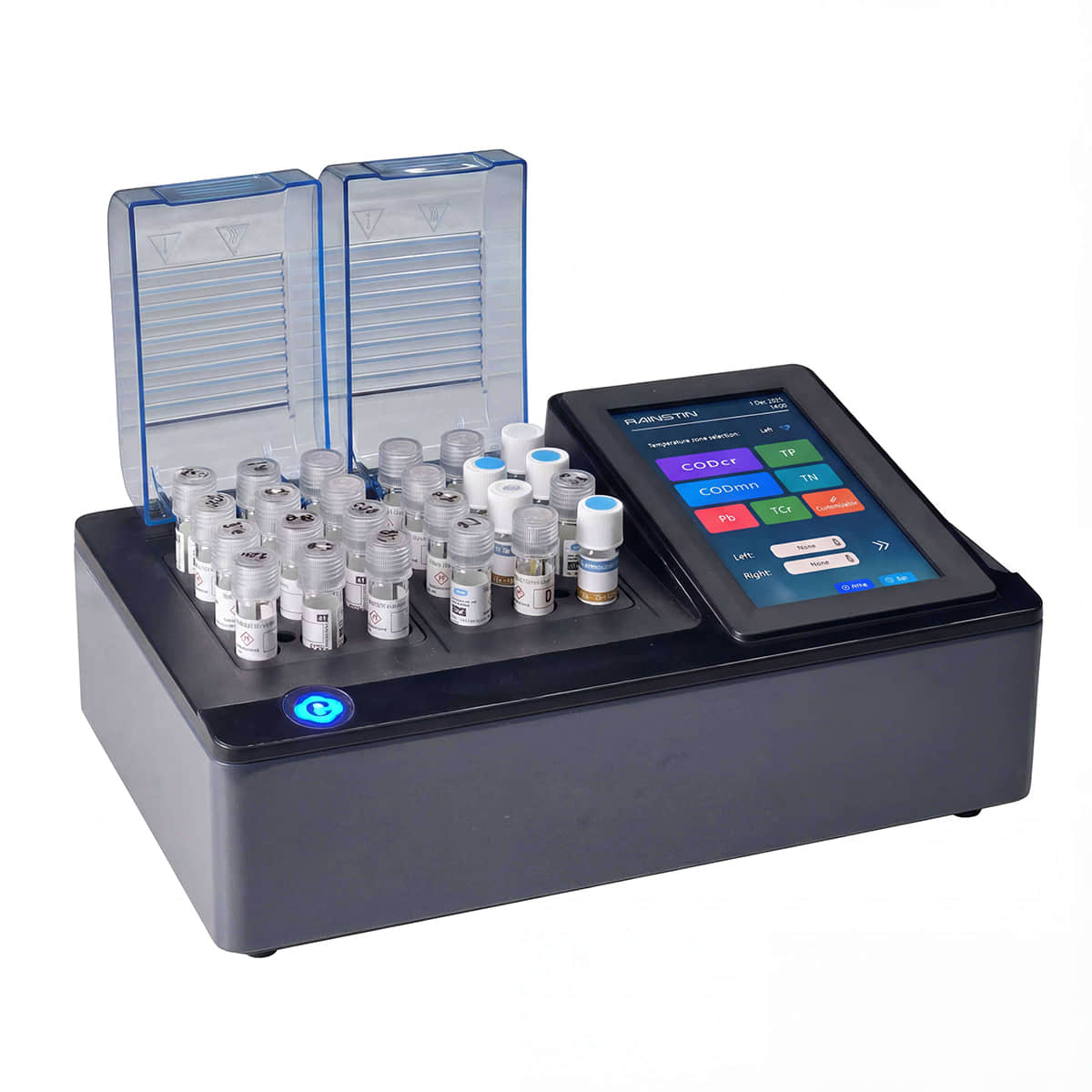

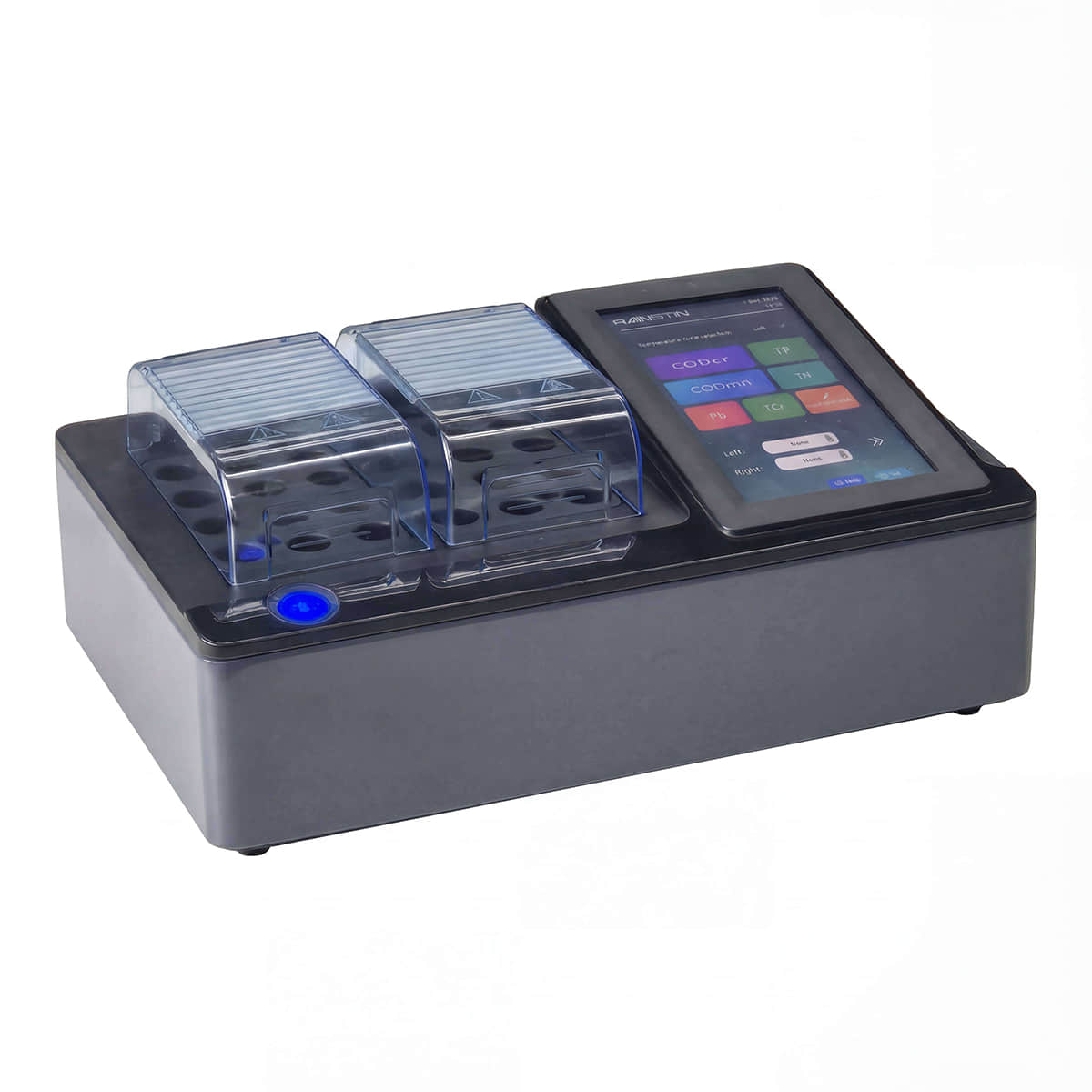

iDea1212 Benchtop Dual Zone Smart Digestion Instrument

The iDea1212 Benchtop Dual Zone Smart Digestion Instrument is an advanced 24-well digester designed with 2 heating zones for water quality testing applications. It is equipped with a 7-inch full-color capacitive touchscreen, which displays real-time temperature control curves for clear monitoring of temperature changes throughout the digestion process.

Featuring a fast, intelligent digestion system, the iDea1212 supports one-touch operation for multiple water quality testing parameters to meet most user needs, with customizable digestion temperature and time for extended applications. Its user-friendly interface and precise temperature control provide a reliable and efficient solution for laboratory water quality testing in environment monitoring, wastewater treatment, industrial water management, education and research.

The iDea1212 is designed with two independent 12-well heating zones that can be controlled separately or simultaneously. When operated independently, different samples can be digested at the same time, significantly reducing total digestion time and improving efficiency.

Key Feature

Display & Input:

• 7-inch full-color capacitive touchscreen with intuitive operation

• Six preset digestion programs (COD, TP, TN, Pb, TCr, CODMn ) with customizable options; Preset programs can be modified using an administrator password.

• Real-time display of temperature curves for precise monitoring during digestion.

• Visual pop-up notifications with audible alerts ensure process monitoring and timely response.

• Real-time display of project type, operating status, current temperature, set time, and remaining time.

Control:

• Dual temperature control options (dual control and single control) to meet diverse experimental needs, enhancing efficiency and sample throughput.

• Thick-film heating technology for long service life and rapid heating.

• Intelligent PID temperature control for precise and stable performance.

• Temperature calibration function to eliminate deviations between displayed and actual sample temperature.

Safety:

• Automatic heating cut-off in case of over-temperature to protect equipment and operator.

• Integrated heat-resistant protective cover for safe observation during digestion.

• Intelligent air-cooling system to maintain suitable internal temperature, prevent burns, and extend electronic component lifespan.

Communication:

• Rich Communication Interfaces: Two USB Type-A, one USB Type-B, and one RS485 interface.

• Supports USB upgrades for display, motherboard firmware, and data export.

• Supports data expansion functionality.

Technical Specifications

Comprehensive operating instructions and technical guidance are provided in the official user manual.

👉 User Manual Download
